POWERGRIP: choose the working insert
Handle 82410001 and 340 mm shaft 82410034 pair with catalogue-listed Standard/Premium inserts. Choose graspers, scissors or Maryland designs for the intended procedure.
Bissinger
Bissinger POWERGRIP, ORBITARIS & POWEREDGE Bipolar Forceps
Model POWERGRIP / ORBITARIS / POWEREDGE
Explore Bissinger laparoscopic bipolar forceps: POWERGRIP, ORBITARIS and POWEREDGE, with handles, shafts, Standard/Premium inserts, blades and component codes.
PRODUCT HIGHLIGHTS
Product highlights
ORBITARIS: rotation and a lockable option
Rotatable handle 82460000 and lockable handle 82460004 feature the manufacturer-described enlarged rotation wheel. Use shaft 82460034 and inserts listed for the POWERGRIP/ORBITARIS platform.

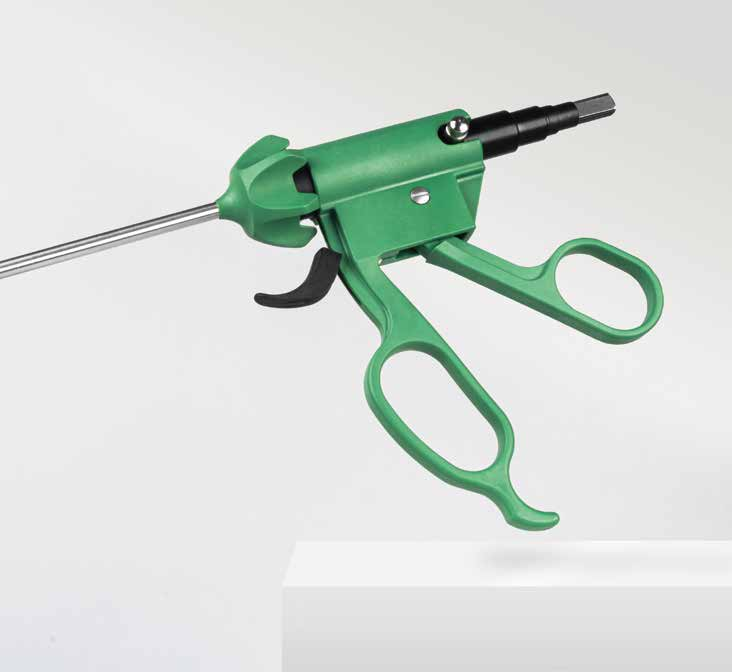

POWEREDGE: coagulation and cutting blade
The manufacturer describes grasping and coagulating tissue between the jaws before trigger-operated cutting without changing instruments. Reusable components and a disposable blade must be assembled in a matching length.
15 Standard / Premium insert designs
The supplied pages list nine Standard and six Premium inserts, including large graspers, Claw, Duckbill, Delta, Maryland, scissors, Toucan and eCut. The manufacturer describes eCut for coagulation and electrical cutting.
TECHNICAL SPECIFICATIONS
Technical specifications
| Specification | Details / value and unit |
|---|---|
| Instrument systems | POWERGRIP | ORBITARIS | POWEREDGE |
| POWERGRIP / ORBITARIS dimensions | Ø 5 mm | Shaft 34 cm = 340 mm |
| POWERGRIP / ORBITARIS electrode rating | max. 500 Vp on the electrode catalogue pages; not a wattage setting |
| POWEREDGE rating | max. 400 Vp; not a wattage setting |
| POWERGRIP — handle | 82410001 |
| POWERGRIP — shaft | 82410034 | 340 mm |
| ORBITARIS — rotatable handle | 82460000 |
| ORBITARIS — lockable handle | 82460004 |
| ORBITARIS — shaft | 82460034 | 340 mm |
| Standard — graspers | 82400010 Large grasping forceps | 82400012 Claw forceps | 82400011 Forceps, curved |
| Standard — additional graspers | 82400015 Grasping forceps, curved | 82400014 Delta Grasper | 82400008 Duckbill Grasper | 82400111 Grasping forceps with 2×3 teeth |
| Standard — scissors and Maryland | 82400018 Scissors, curved | 82400019 Maryland dissector, curved |
| Premium — eCut and graspers | 82408039 eCut, curved | 82408010 Large grasping forceps, fenestrated | 82408015 Grasping forceps, fenestrated, curved |
| Premium — additional inserts | 82408011 Toucan Grasping forceps | 82408018 Scissors, curved | 82408019 Maryland dissector, curved |
| POWEREDGE — handle | 82710001 | Cutting trigger |
| POWEREDGE — shaft | 250 mm: 82710030 | 340 mm: 82710034 |
| POWEREDGE — electrode | 250 mm: 82710104 | 340 mm: 82710100 |
| POWEREDGE — drive rod | 250 mm: 82710501 | 340 mm: 82710500 |
| POWEREDGE — blade holding tube | 250 mm: 82710601 | 340 mm: 82710600 |
| POWEREDGE — disposable blade | 82710300 | Disposable blade, separate from reusable components |
| Handles and shafts, pp. 66–67 |  Full-resolution link in Further details. |
| Standard / Premium inserts, pp. 68–69 |  Full-resolution link in Further details. |
| POWEREDGE components, pp. 70–71 |  Full-resolution link in Further details. |
EQUIPMENT & ACCESSORIES
Equipment & accessories
- Configure POWERGRIP / ORBITARIS
Specify compatible handle, shaft, insert and bipolar cable by code. This page does not imply every listed component is supplied as one standard kit.
- Configure POWEREDGE
Match the 250 or 340 mm shaft, electrode, drive rod and blade holding tube, together with the handle and blade 82710300.
- Cables and generator
Select a compatible bipolar cable and generator, checking connector and rating compatibility across the system. Generator and cable are not automatically included.
ADDITIONAL INFORMATION
Additional information
Reusable and disposable components
POWEREDGE is described as separable into five pieces for cleaning and uses a disposable blade. Inspect and reprocess reusable parts according to the model-specific IFU; do not infer service life or cycle limits from colour or material.
Request a workflow-matched configuration
Provide procedure type, generator model, required length, jaw design and handle preference. The team can match component codes and supply scope. A Vp rating is not a patient treatment setting.
Further details
Full-resolution catalogue images
Compare shapes and codes on pp. 66–71## POWERGRIP / ORBITARIS
https://www.tawanmcweis.com/media/a2a30df6babf3642444e205b0b454b71.png
Standard / Premium
https://www.tawanmcweis.com/media/899026c975f0de0553df5e95580d648d.png
POWEREDGE
https://www.tawanmcweis.com/media/f3d3908ff9abd6bc1ae51825361afa5a.png
Select a bipolar cable
https://www.tawanmcweis.com/products/bissinger-electrosurgical-cables?lang=en
Manufacturer
https://www.bissinger.com/en/downloads/instruction%20for%20use
คำถามที่พบบ่อย / FAQ
Do POWERGRIP and ORBITARIS share inserts?
The catalogue lists these Standard and Premium inserts for both systems. Confirm exact codes and assembly versions before ordering.
Is the POWEREDGE blade reusable?
Blade 82710300 is disposable and separate from the reusable instrument components. Follow labelling and IFU.
How many millimetres is a 34 cm shaft?
34 cm equals 340 mm. The pictured POWEREDGE range has 250 and 340 mm options.
Are 500 Vp and 400 Vp treatment power settings?
No. These are catalogue peak-voltage ratings: max. 500 Vp for the shown POWERGRIP/ORBITARIS inserts and 400 Vp for POWEREDGE. Check the complete system IFUs before use.
